Voltage Stabilizer
servo voltage stabilizer is a stabilizer which constantly monitors the output voltage and controls variations in the input voltage by the movements of a motor. In other words, it automatically regulates the voltage. This motor decides the output voltage on the transformer. It is considered to be a cheap and good voltage stabilizer. This is a perfect solution to protect the appliances from voltage fluctuations. HI-TECH India the leaders in voltage stabilizer manufacturers, offers advanced micro controller based voltage stabilizers.
A stabilizer is highly important for optimum performance of any electrical or electronic equipment that maintains input mains voltage stability. A fluctuation, be it a high voltage or low voltage can prove harmful on the voltage-sensitive devices. Hence, a solution has been identified by servo stabilizer manufacturers that will guarantee that the voltage will be under the safety limits. The stabilizer ensures that the load is operated within safety limits and machines operate at a better efficiency avoiding losses.
HI-TECH is the premier voltage stabilizer manufacturers in Jalgaon & Jalgaon offers specially designed solutions. These solutions are created using the advanced microcontroller in which the voltage stabilizer provides precise and accurate correction with a feature of auto-calibration. As innovative servo stabilizer manufacturers in India, we have been employing an instant response system using a feedback mechanism to enhance the correction of automatic voltage stabilizer.
Outstanding Features
- Consistent and fixed supply of voltage
- High Efficiency
- No phase shift
- Output adjustment possible
- High speed correction
- No effect on power factor
- Output adjustment possible
- +/- 1% regulation of output
- Stabilizer designed for Generater Compatible
- Auto/Manual operation facility
- No wave distortion
- Voltage Range (Input) 90V to 290V
- High Voltage Cut-off on 290V Input and 240V Output
- It can Spot all electrical appliances
- It turns on delay 5 seconds
- Available with Primary switching technology
- It can perform in wide input range

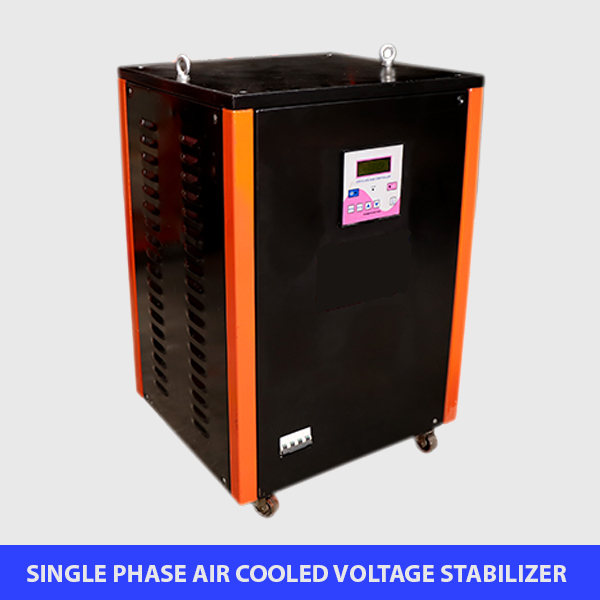

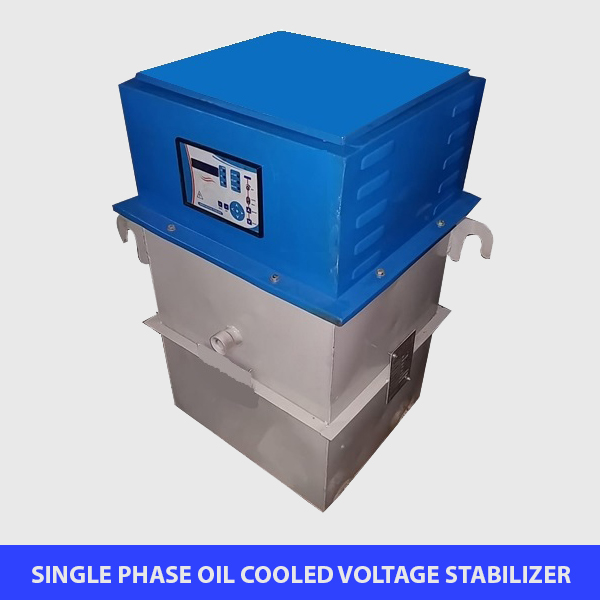

Single Phase
Rating | 1KVA - 60KVA |
Input Voltage | 140 V to 300V 150 V to 270V 170 V to 270V 1 Phase, 50 Hz |
Input frequency | 47 Hz TO 53 Hz |
Output Voltage | 1 Phase, 50 Hz 230 +/- 1% 220 +/- 1% 240 +/- 1% |
Voltage Regulation | +/- 1% |
Motorization | AC Motor |
Efficiency | Better Than 98% |
Cooling | Oil Cooled Upto 300KVA (SPOC) Air Cooled Upto 100KVA (SPAC) |
Waveform distortion | Nil |
Rate of Corrections | Usually 25V/Sec/Phase but depends on rating. |
O/P Voltage Adjustment | By means of programming. |
Controls | Auto / Manual Microprocessor Based Control In Auto Mode |
Protection /Specification | Under/Over voltage cut off by contactor Short Circuit Protection Overload & Short Circuits Protection By MCCB Phase & Neutral reversal |
Indication | Fix & Scrolling LCD Window to see all the Standard I/P & O/P Parameters of the Stabilizer. |
Additional features | Inbuilt Manual bypass switch |

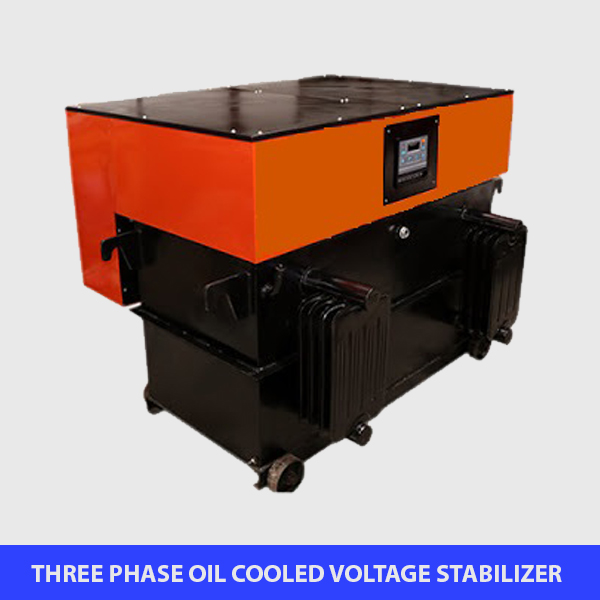

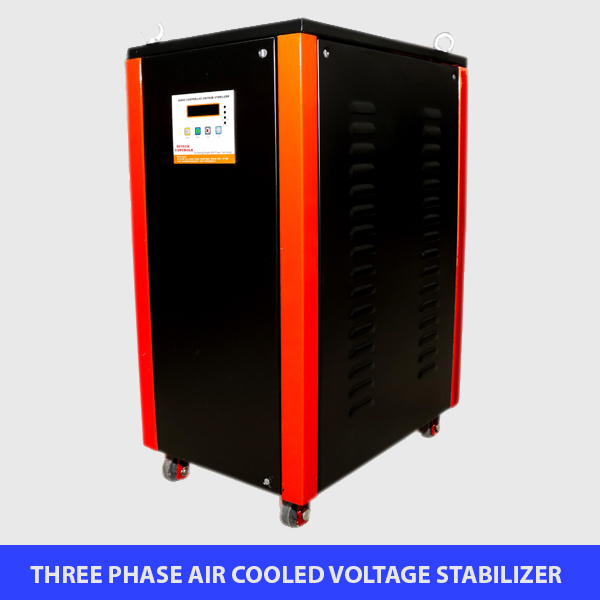

Three Phase
Rating (3PH-3PH) | 5KVA - 3000KVA(Microprocessor Based) |
Input Voltage | 300 V to 500V 340 V to 480V 360 V to 470V 3 Phase, 4 Wires, 50 Hz, Unbalance |
Input frequency | 47 Hz TO 53 Hz |
Output Voltage | 415 +/- 1% 3 Phase, 4 Wires, 50 Hz, Unbalance |
Voltage Regulation | +/- 1% |
Motorization | AC Motor |
Efficiency | Better Than 98% |
Cooling | Oil Cooled Upto 3000KVA (TPOC) Air Cooled Upto 200KVA (TPAC) |
Waveform distortion | Nil |
Rate of Corrections | Usually 50V/Sec/Phase but depends on rating. |
O/P Voltage Adjustment | By means of programming. |
Controls | Auto / Manual In Auto Mode Microprocessor Controls |
Protection /Specification | Under/Over voltage cut off by contactor Short Circuit Protection Overload & Short Circuits Protection By MCCB Phase & Neutral reversal Single Phasing Preventer. |
Indication | Fix & Scrolling LCD Window to see all the Standard I/P & O/P Parameters of the Stabilizer. |
Additional features | Inbuilt Manual bypass switch |
