Uninterruptible Power Supply

An uninterruptible power supply or uninterruptible power source (UPS) is an electrical apparatus that provides emergency power to a load when the input power source or mains power fails. A UPS differs from an auxiliary or emergency power system or standby generator in that it will provide near-instantaneous protection from input power interruptions, by supplying energy stored in batteries, supercapacitors, or flywheels.

A UPS is typically used to protect hardware such as computers, data centers, telecommunication equipment or other electrical equipment where an unexpected power disruption could cause injuries, fatalities, serious business disruption or data loss. UPS units range in size from units designed to protect a single computer without a video monitor (around 200 volt-ampere rating) to large units powering entire data centers or buildings.

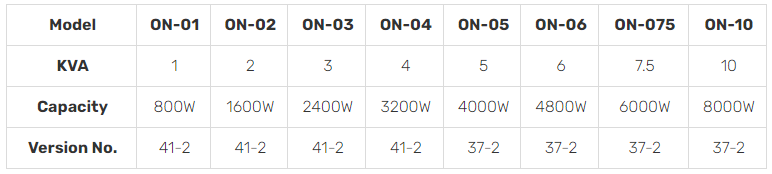

1-10KVA ONLINE UPS

We have over 15 years of experience Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean Lorem ipsm dolor sit the power of consectetur adi pisi cing elit, sed do eiusmod tempor xercitationemut labore. Lorem ipsum dolor sit amet, consectetur adipiscing elit.

image description

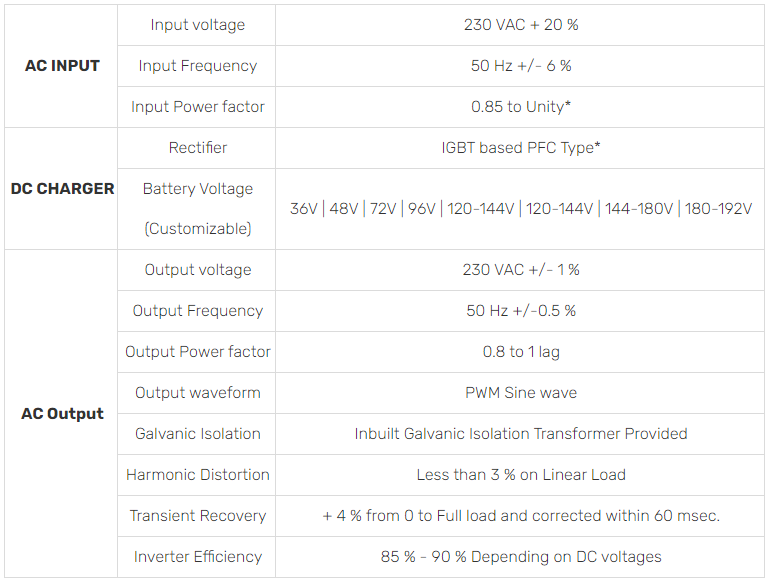

Technical Specifications

image description

Features

DIGITAL METERING:

(Micro controller based Digital Scrolling LCD to Display*)

  • Input Voltage
  • Output Voltage
  • Load Current
  • load %
  • Charging Current
  • Battery Voltage
  • % Battery Charge

AUDIBLE ALARM:

  • Intermittent beep for 30 sec
  • On mains fail
  • Battery low pre-alarm at 80 % of Battery discharge
  • Intermittent Beep for all other Trip Conditions

FAULT INDICATIONS:

  • Mains Off
  • DC Over voltage
  • Output Overload
  • Output under voltage/Over voltage
  • Battery Low pre-alarm & Trip
  • Input under voltage/over voltage
  • Input Single Phasing / Phase Reversal

PROTECTIONS:

  • Output Overload
  • Output short circuit
  • Battery low trip
  • DC over voltage
  • Output under voltage / over voltage

COMMUNICATION:

GSM Modem for SMS Alerts to user and service center for any Fault conditionPC Interface (SNMP) to display UPS Data on user PC and Safe Shutdown facility.

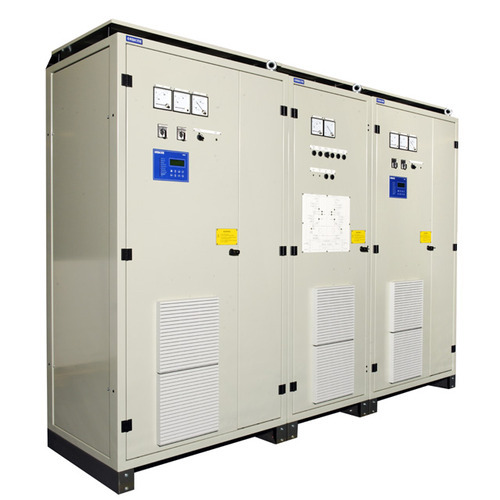

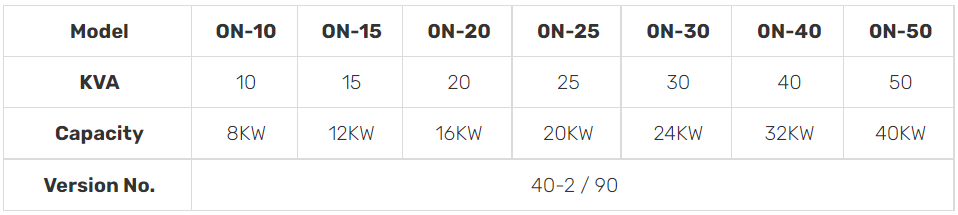

10-50KVA ONLINE UPS (Single-Phase & 3-Phase)

image description

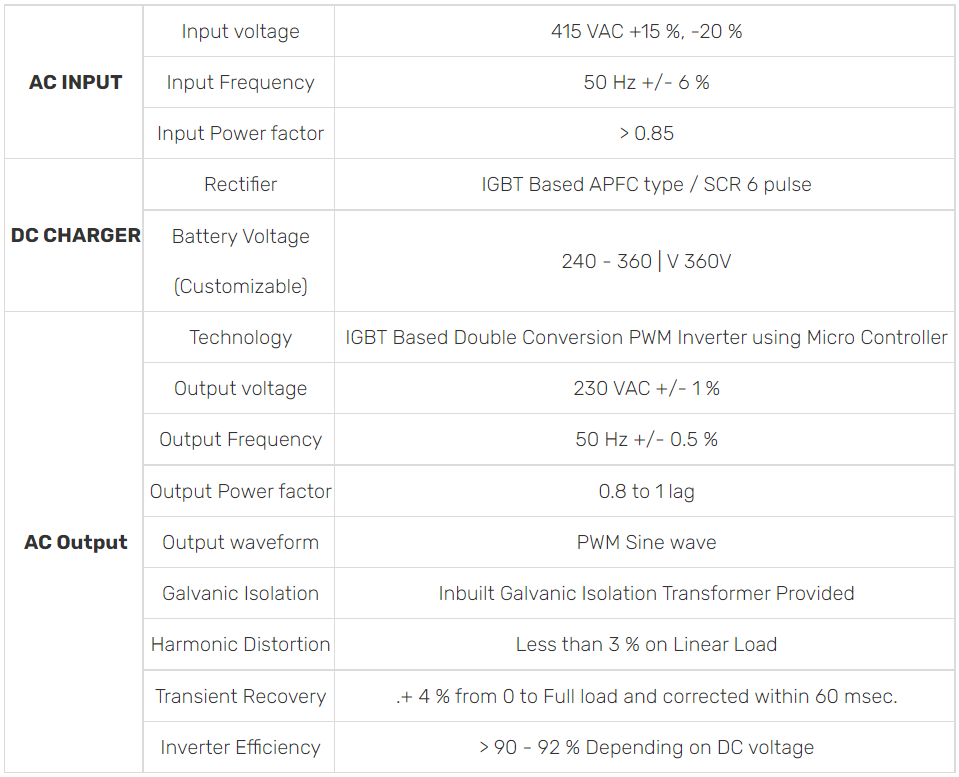

Technical Specifications:

image description

Features

DIGITAL METERING:

(Micro controller based Digital Scrolling LCD to Display*)

  • Input Voltage
  • Output Voltage
  • Load Current
  • load %
  • Charging Current
  • Battery Voltage
  • % Battery Charge

AUDIBLE ALARM:

  • Intermittent beep for 30 sec
  • On mains fail
  • Battery low pre-alarm at 80 % of Battery discharge
  • Intermittent Beep for all other Trip Conditions

FAULT INDICATIONS:

  • Mains Off
  • DC Over voltage
  • Output Overload
  • Output under voltage/Over voltage
  • Battery Low pre-alarm & Trip
  • Input under voltage/over voltage
  • Input Single Phasing / Phase Reversal

PROTECTIONS:

  • Output Overload
  • Output short circuit
  • Battery low trip
  • DC over voltage
  • Output under voltage / over voltage

COMMUNICATION:

GSM Modem for SMS Alerts to user and service center for any Fault conditionPC Interface (SNMP) to display UPS Data on user PC and Safe Shutdown facility.

INPUT AUTO PHASE CORRECTOR:

Input Auto Phase Correction in case of Phase Reversal.

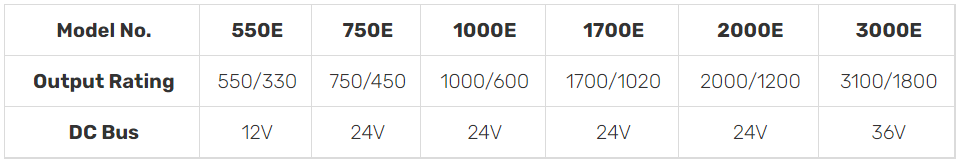

Offline UPS

image description

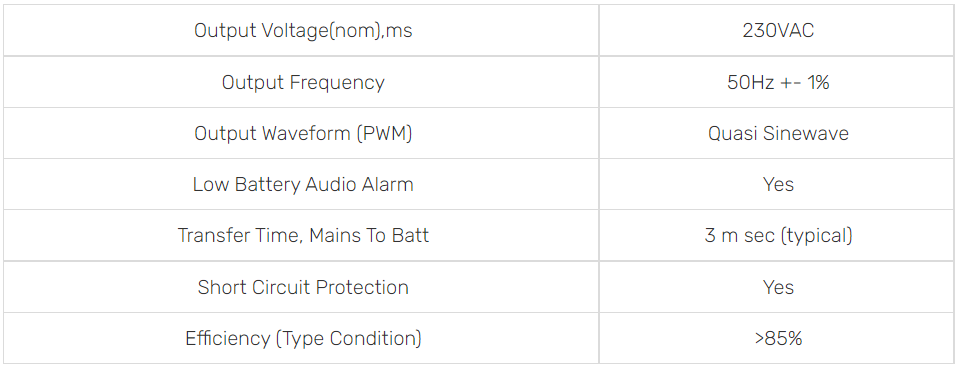

Battery Operation

image description

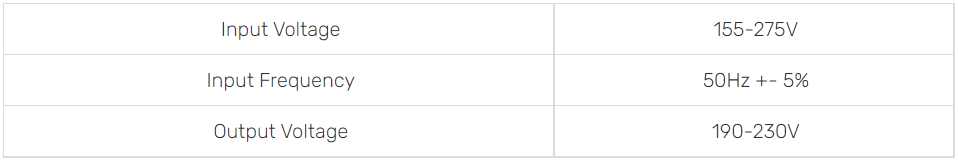

Mains Operations

image description
